Special Shaped Steel Grating

Special-shaped steel gratings are manufactured into various irregular configurations based on customers’ specific requirements. Common forms include corner-cut, hole-cut, arc-cut, and fan-shaped designs. This customization eliminates the need for on-site secondary cutting upon delivery, making construction and installation more efficient and straightforward while preventing damage to the galvanized layer that would occur with on-site cutting. Special-shaped steel gratings are defined in relation to rectangular steel gratings.

العلامات: شبكة فولاذية

Zoe@baowuchina.com رسالة

تفاصيل المنتج

Special Shaped Steel Gratings Common Specifications

Bear Bar(mm)	Cross Bar(mm)			Bearing Bar Spacing(mm)			Cross Bar Spacing(mm)
20×3	5×5	6×6	8×8	30	34	40	38	50	100
20×5	5×5	6×6	8×8	30	34	40	38	50	100
25×3	5×5	6×6	8×8	30	34	40	38	50	100
25×5	5×5	6×6	8×8	30	34	40	38	50	100
30×3	5×5	6×6	8×8	30	34	40	38	50	100
30×5	5×5	6×6	8×8	30	34	40	38	50	100
32×3	5×5	6×6	8×8	30	34	40	38	50	100
32×5	5×5	6×6	8×8	30	34	40	38	50	100
40×3	5×5	6×6	8×8	30	34	40	38	50	100
40×5	5×5	6×6	8×8	30	34	40	38	50	100
50×3	5×5	6×6	8×8	30	34	40	38	50	100
50×5	5×5	6×6	8×8	30	34	40	38	50	100
* The table is of regular specifications. If other models are required, we will customize them for customers.

Special Shaped Steel Grating Shapes

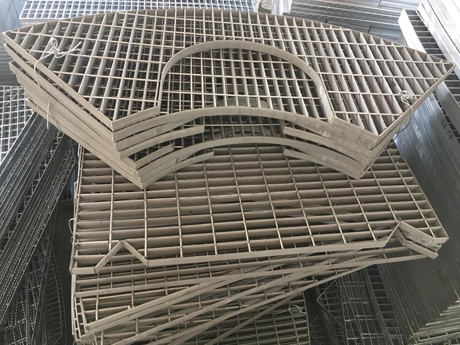

sector-steel-grating

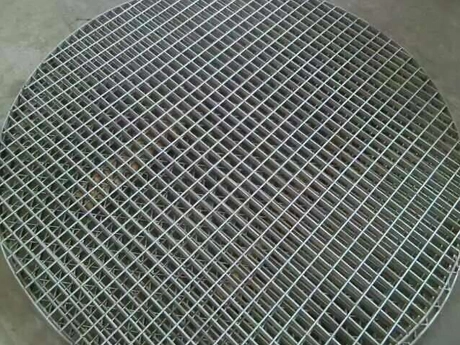

round-steel-grating

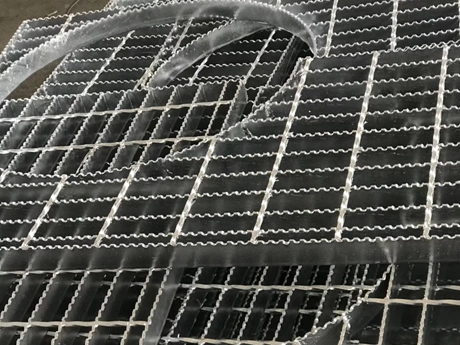

arc-cut-steel-grating

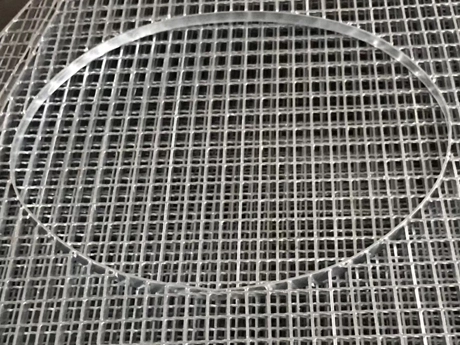

circular-cut-steel-grating

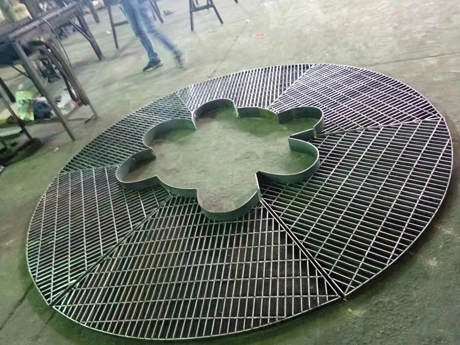

multiple-shape-steel-grating-1

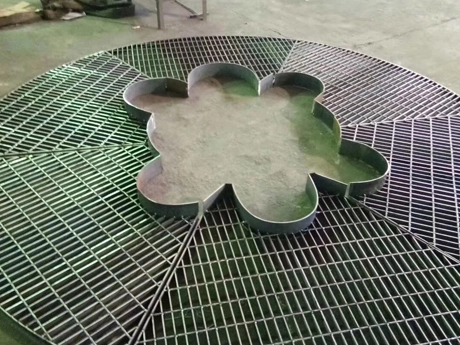

multiple-shape-steel-grating-2

Characteristics of Special Shaped Steel Grating

Light weight: Compared with traditional steel plate materials, special-shaped steel grating is lighter and easier to carry and install.
High strength: Due to the special structure of the steel bar, the special-shaped steel grating has high compressive strength and bending strength and can withstand large loads.
Corrosion resistance: The surface of the special-shaped steel grating is hot-dip galvanized or sprayed, and has good corrosion resistance and can be used in humid and corrosive environments.
Good looking: The surface of the special-shaped steel grating has been treated to have a bright and flat surface, which is beautiful and can enhance the overall image of the building.
