Introduction
In industrial infrastructure and municipal engineering, safety is always the top priority for platform flooring, walkway systems, and drainage covers. Standard open-grid steel grating features wide spacing that may cause small tools, parts, or debris to fall through, creating potential safety hazards and equipment damage risks. In contrast, dense welded grating adopts a compact tight-grid welding design, solving the anti-falling and anti-blocking pain points of traditional grating. As a high-safety upgraded version of welded steel grating, dense welded grating is widely specified by engineers and global B2B purchasers for safety-critical industrial passages, precision equipment zones, municipal public facilities, and offshore platforms.
Different from ordinary wide-aperture welded grating, dense welded grating is manufactured with minimized uniform grid spacing and full fusion welded joints, achieving dual performance of structural rigidity and high safety. This in-depth Google SEO guide covers the professional definition, manufacturing technology, product types, core advantages, application scenarios, product comparisons, and industry selection standards of dense welded grating, providing authoritative purchasing references for global industrial and municipal projects.
What Is Dense Welded Grating? Professional Definition
Dense welded grating is a high-safety industrial steel grating manufactured through automatic precision resistance welding, featuring ultra-tight and uniform dense grid apertures. It consists of high-strength bearing bars and transverse cross bars, with every intersection permanently fused into an integrated structure via electro-forge welding. The most distinctive feature of dense welded grating is its narrow grid spacing, which greatly reduces grid openings compared with standard welded grating, forming a professional anti-drop and anti-clog safety grid system.
While retaining the advantages of traditional welded grating such as high load capacity, ventilation, and drainage, dense welded grating makes up for the safety defects of wide-grid grating. It can effectively block small industrial parts, tools, stones, and sundries from falling, avoiding equipment failure, pipeline blockage, and personnel safety accidents. It is a standardized safety-grade structural material specially designed for high-standard industrial platforms, pedestrian-only walkways, and municipal public infrastructure.
Precision Manufacturing Process of Dense Welded Grating
The tight grid uniformity, structural stability, and safety performance of dense welded grating rely on high-precision standardized production processes. The dense welding process has higher technical requirements than ordinary grating, ensuring zero deformation and uniform aperture of finished panels.
High-Quality Raw Material Screening
Production adopts high-quality carbon steel or marine-grade stainless steel with stable mechanical properties. All raw materials pass tensile strength and chemical composition testing to ensure no brittle deformation during dense welding. Steel bars are precisely cut, straightened, and deburred to guarantee consistent bar thickness and flatness, laying a foundation for uniform dense grid layout.
Precision Spacing Positioning & Automatic Dense Welding
Different from ordinary grating’s wide-spacing layout, dense welded grating adopts micron-level precise positioning equipment to arrange bearing bars and cross bars at ultra-narrow fixed intervals. Professional automatic resistance welding equipment performs full fusion welding at every bar intersection. Instant high current and hydraulic pressure complete metallurgical fusion, forming solid, seamless welding joints. The whole process avoids grid spacing deviation and loose joints, ensuring the compact and stable structure of dense grid.
Finishing & Custom Surface Treatment
After welding molding, panel edges are polished and deburred to eliminate sharp corners and burrs, meeting industrial safety standards. According to application environments, dense welded grating undergoes hot-dip galvanizing, electro-galvanizing, or stainless steel passivation treatment. The surface anti-corrosion layer effectively resists rust, oxidation, and salt fog erosion, greatly extending service life.
Strict Safety Quality Inspection
Finished dense welded grating undergoes professional anti-drop performance testing, load-bearing detection, grid spacing uniformity inspection, and welding joint strength verification. All products comply with international industrial safety specifications to ensure stable anti-falling ability and structural safety in long-term use.
Main Types of Dense Welded Grating
According to material properties, surface design, and load standards, dense welded grating is divided into four mainstream types, covering all safety-level industrial and municipal application scenarios.
Galvanized Dense Welded Grating
Hot-dip galvanized dense welded grating is the most cost-effective conventional safety grating. The overall zinc coating provides excellent anti-rust and anti-oxidation performance, adapting to indoor factory environments and outdoor municipal facilities. With compact dense grid design and stable load capacity, it is widely used for factory maintenance walkways, urban drainage trench covers, and park pedestrian paths, meeting daily safety and functional needs of most projects.
Stainless Steel Dense Welded Grating
Made of 304 or 316 stainless steel, stainless steel dense welded grating has superior acid and alkali resistance, salt fog corrosion resistance, and high-temperature stability. Without galvanized coating, it features smooth surface, easy cleaning, and no rust. It is suitable for harsh environments such as chemical plants, pharmaceutical workshops, food processing factories, and coastal offshore platforms, meeting high-standard anti-corrosion and safety requirements.
Serrated Anti-Slip Dense Welded Grating
Serrated dense welded grating integrates anti-drop safety and anti-slip performance. Precision serrated teeth are machined on the surface of bearing bars to increase friction coefficient, effectively preventing slipping in wet, oily, and frosty environments. The dense grid structure avoids falling risks, making it the best choice for industrial stair treads, outdoor safety walkways, and humid workshop passages.
Heavy-Duty Dense Welded Grating
Heavy-duty dense welded grating adopts thickened bearing bars and reinforced dense welding joints. On the premise of maintaining ultra-tight anti-drop grid, it greatly improves impact resistance and heavy-load bearing capacity. It can withstand long-term equipment pressure and partial mechanical impact, suitable for heavy industrial precision equipment platforms and high-load safety passages.
Core Advantages of Dense Welded Grating
As a professional safety-grade grating, dense welded grating has irreplaceable comprehensive advantages compared with traditional wide-grid grating, solving multiple safety and functional pain points in engineering applications.
Excellent Anti-Drop Safety Performance
The ultra-tight dense grid spacing effectively blocks small tools, screws, parts, stones, and other sundries from falling, protecting lower equipment, pipelines, and staff safety. It fully complies with industrial anti-falling safety specifications and is the preferred material for high-standard safety passages.
Anti-Clogging & Efficient Drainage
Although the grid is dense, the regular and smooth gap design ensures unobstructed water flow, realizing rapid drainage and avoiding road and platform water accumulation. Meanwhile, it can block large silt and fallen leaves, preventing underground drainage pipeline blockage and reducing manual cleaning frequency.
Integrated Structural Stability & Uniform Load Bearing
Full fusion dense welding makes the entire panel an integrated rigid structure with uniform force distribution. It will not loose, deform or shift under long-term pedestrian walking and equipment vibration. The overall structural stability is far better than mechanically locked grating, ensuring long-term safe operation.
Strong Environmental Adaptability & Low Maintenance
With galvanized or stainless steel anti-corrosion performance, dense welded grating adapts to high humidity, coastal salt fog, and mild chemical corrosion environments. The dense grid structure is durable and not easy to damage, with almost no daily maintenance required, effectively reducing project lifecycle costs.
High Ventilation & Light Transmission
Different from fully enclosed solid plates, dense welded grating retains open-grid permeability. It ensures smooth air circulation and natural light transmission for industrial platforms and municipal passages, avoiding dampness, mildew and poor air circulation in closed spaces.
Wide Applications of Dense Welded Grating
Relying on outstanding anti-drop safety and functional advantages, dense welded grating is widely used in safety-sensitive industrial, municipal, marine and commercial scenarios.
Industrial Factory Safety Facilities

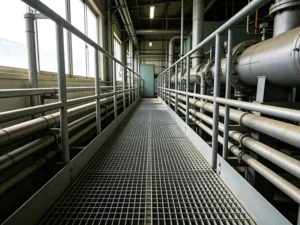

Dense welded grating is the standard material for factory narrow maintenance walkways and precision equipment platforms. The dense grid prevents small parts from falling into mechanical equipment, avoiding production failures and safety accidents. It is also commonly used for industrial workshop trench covers and overhead safety passages to ensure standardized factory operation.
Chemical & Petrochemical Plants
Chemical plant pipeline walkways and refinery maintenance platforms have extremely high safety requirements. Stainless steel dense welded grating can resist chemical corrosion, while its anti-drop structure prevents sundries from falling into chemical pipelines and reaction equipment, ensuring safe and stable operation of petrochemical facilities.
Offshore & Port Marine Projects
Offshore drilling platforms and port wharf maintenance passages adopt dense welded grating to prevent tools and marine sundries from falling into seawater and underwater equipment. Its salt fog corrosion resistance adapts to harsh marine environments, meeting high-standard marine engineering safety regulations.
Municipal Public Infrastructure
Urban roadside drainage trenches, sidewalk anti-block grating covers, and urban park pedestrian paths all use galvanized dense welded grating. It blocks fallen leaves, gravel and garbage from entering drainage pipelines to prevent urban waterlogging, while ensuring safe pedestrian passage.
Commercial & Special Scenarios
Serrated dense welded grating is suitable for car wash fine-filter flooring, warehouse safety passages and industrial building stair treads. It realizes anti-slip, anti-falling and anti-clogging multiple functions, meeting the safety needs of commercial and industrial integrated scenarios.
Dense Welded Grating vs Other Types of Grating
Clear product comparison helps B2B buyers accurately select grating materials according to project safety levels and avoid improper selection leading to hidden dangers.
Dense Welded Grating vs Standard Welded Grating
Standard welded grating has wide grid spacing with low safety factor, which cannot prevent small parts from falling, only suitable for ordinary low-safety-demand platforms. Dense welded grating adopts ultra-tight grid design with excellent anti-drop performance, higher overall rigidity and safer use. Although the cost is slightly higher, it is more suitable for safety-critical industrial and municipal projects with strict standards.
Dense Welded Grating vs Press-Locked Grating
Press-locked grating relies on mechanical clamping without welding, and joints are easy to loose and shift under vibration, with poor overall stability. Dense welded grating adopts full fusion welding with integrated structure, no displacement, higher safety and durability. Meanwhile, dense welded grating has more uniform grid spacing and better anti-blocking effect.
Dense Welded Grating vs Perforated Grating
Perforated grating has small holes but poor drainage and easy blockage, with low structural strength. Dense welded grating has smooth grid gaps, unobstructed drainage, strong impact resistance and longer service life, which is more suitable for long-term outdoor and industrial heavy-use scenarios.
Professional Selection & Maintenance Guide for Dense Welded Grating
Reasonable specification selection and daily maintenance can maximize the service life and safety performance of dense welded grating.
Material Selection: Conventional inland factories and municipal projects choose economical hot-dip galvanized dense welded grating. Coastal, chemical corrosion and high-hygiene scenarios select 304/316 stainless steel models. Wet and slippery passages prioritize serrated anti-slip dense welded grating.
Load Grade Selection: Pedestrian-only safety walkways and municipal facilities use standard dense welded grating. Precision equipment platforms and occasional light equipment pressure areas need heavy-duty thickened grating to ensure sufficient safety load margin.
Grid Spacing Selection: Scenarios requiring strict anti-falling of tiny parts adopt ultra-dense spacing. General safety passages can choose conventional dense grid to balance safety and ventilation drainage efficiency.
Daily Maintenance Tips: Dense welded grating requires low maintenance. Regularly clean surface silt and debris to keep grid gaps unobstructed. Regularly check welding joints and fixing parts to ensure firm installation and avoid potential safety hazards.
Conclusion
Dense welded grating fills the safety gap of traditional wide-grid steel grating with its unique compact dense grid design and high-strength welded structure. It integrates anti-drop safety, anti-clog drainage, ventilation permeability and structural stability, becoming the preferred safety-grade grating for modern industrial precision platforms, factory maintenance walkways, marine offshore facilities and municipal public infrastructure.
For global B2B engineering contractors and industrial purchasers, selecting high-quality dense welded grating can effectively improve project safety standards, reduce equipment failure rates and long-term maintenance costs, and provide stable and reliable safety guarantees for various high-standard infrastructure projects.
